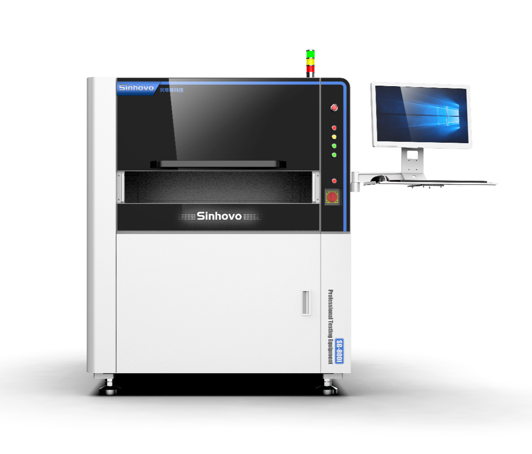

Full functionality:
The hole detection must cover the entire area.
Observation of the wall of the microscopic visual Stencil ;
Direct measurement of the thickness of the stepped Stencil ;
High-precision tension measurement scheme;
Check for poor hole drilling throughout the board;

High precision:
Conceptual design of high-precision measurement equipment;
Marble platform, fully cast gantry structure;
High-precision and high-speed grating scale feedback positioning;
Three grating scales, full closed-loop coordinate positioning technology;
Full-panel scanning inspection technology (for detecting perforations, damages and deformations of Stencil);
High-resolution imported cameras and lenses;

Process Research Window:
Virtual Printing Function:
Comparison and analysis of Stencil GERBER products;
PCB GERBER comparison analysis;
Physical scanning and comparison of PCB;
Physical scanning, inspection and comparison of the Stencil.
The above four points are all analyzed through comprehensive comparison.

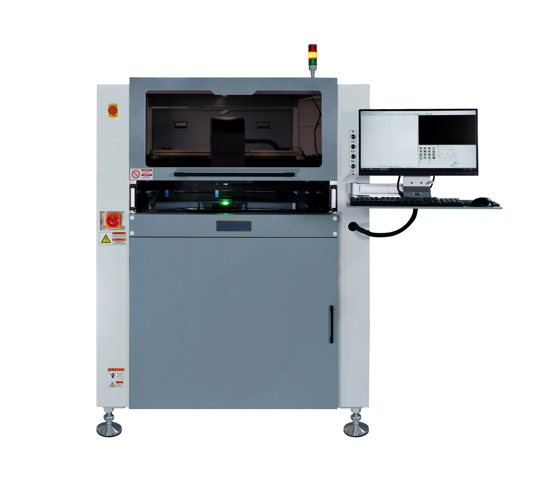

Full functionality:
The hole detection must cover the entire area.
Observation of the wall of the microscopic visual stencil;
Direct measurement of the thickness of the stepped stencil;
High-precision tension measurement scheme;
Check for poor hole drilling on the entire panel;
Automatic inspection of frame deformation;
Laser distance measurement function + Side camera thickness inspection function;

High precision:
Conceptual design of high-precision measurement equipment;
Full high-precision marble platform + gantry structure;
Full linear motor drive + 3 grating scale closed-loop positioning;
High-precision, high-speed non-contact optical encoders;
Full closed-loop end-effector coordinate feedback positioning technology;
Full-panel scanning detection technology (for detecting perforations, damages and deformations of stencil);
High-resolution imported camera, with a maximum resolution of up to 100 million pixels;
Track-type steel mesh clamping and transportation structure, and automatic connection.

Advanced Technology Research Function:
Virtual printing comparison function;
Comparison and analysis of stencil GERBER products;
PCB GERBER comparison analysis;
Physical scanning and comparison of PCB pads, as well as GERBER generation;
Physical scanning, inspection and comparison of the stencil.
The above four points are all analyzed through comprehensive comparison.
